Your kitchen layout determines more about your remodel than the cabinets, the countertops, or the appliances combined. A layout change means moving plumbing, rerouting electrical, and sometimes removing walls — which is why the difference between a same-layout refresh and a full layout change can be $30,000 or more.

Most kitchen layout ideas online come from cabinet companies and design software. They'll show you four pretty floor plans and tell you to “consider an island.” What they won't tell you is which walls are load-bearing, what it costs to move a sink on a concrete slab, or why that open concept conversion is three times more expensive than you think.

This is the version from the other side of the wall.

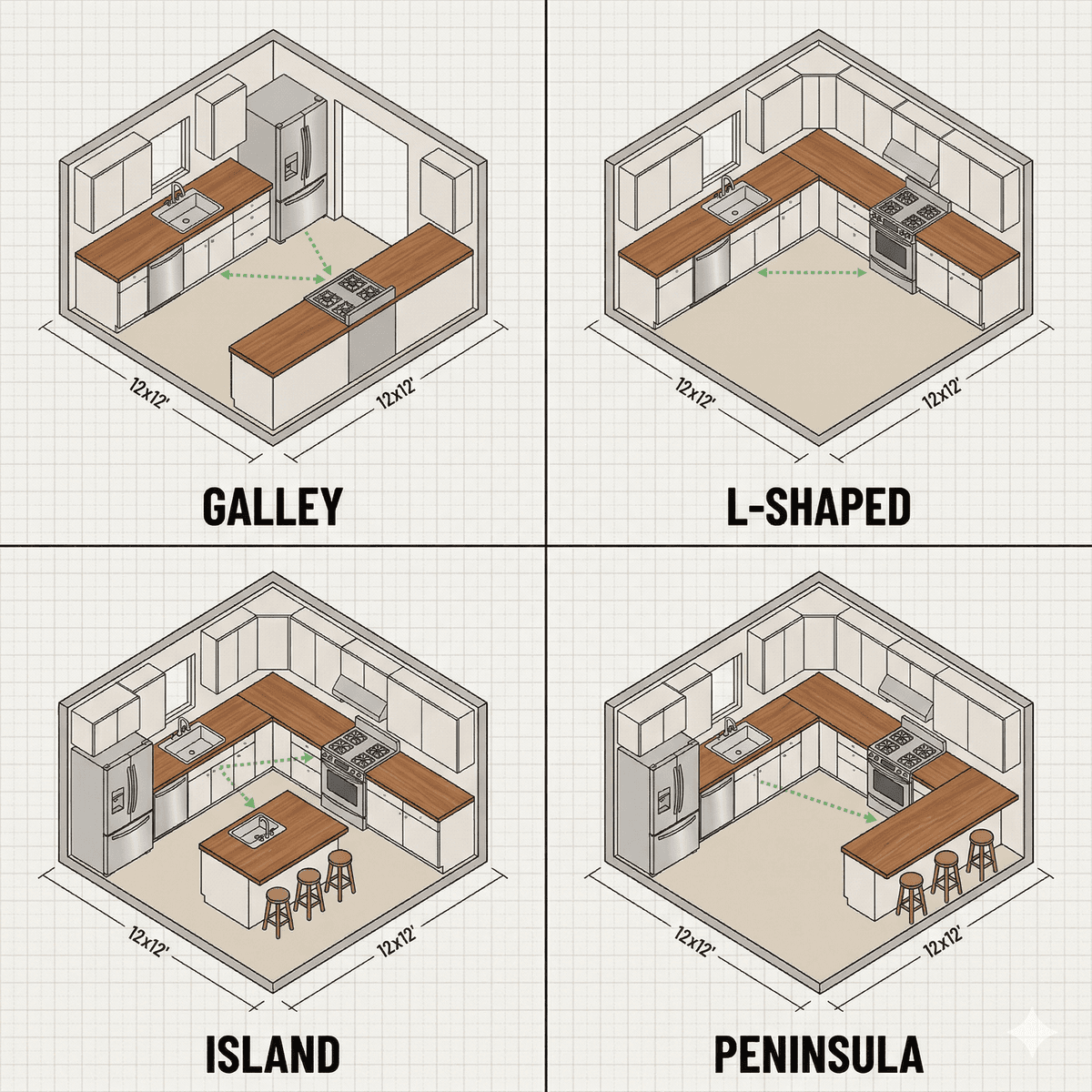

The Four Kitchen Layouts (and What Each One Actually Requires)

Every kitchen falls into one of four basic layouts. Here's what matters about each one — not just how it looks, but what it takes to build or convert to it.

Galley

Two parallel walls, no island. The most common kitchen layout in older St. Petersburg homes — especially pre-1960s bungalows in Old Northeast and Kenwood where the kitchen was often an afterthought on a converted sleeping porch.

Good for: Narrow spaces, efficient cooking, single-cook households. The shortest walking distance between stations. If you're working with a small kitchen in an older St. Pete home, this is probably what you're starting with.

Structural reality: Galley kitchens are cheap to refresh because the plumbing and electrical are concentrated on two walls. But converting a galley to anything else usually means removing at least one wall — and in older St. Pete homes, that wall is often load-bearing.

L-Shaped

Counters along two perpendicular walls, one open side. The most popular layout for renovations because it opens up the room without requiring massive structural changes.

Good for: Open-plan living, adding an island later, entertaining while cooking.

Structural reality: If you're converting from a galley, you're removing a wall and potentially relocating the sink or range. Moving a sink on a slab-on-grade foundation — which is most of St. Petersburg — means cutting into the concrete to reroute drain lines. Budget $5,000–$10,000 just for plumbing relocation on a slab.

Island Layout

L-shape or U-shape with a freestanding island in the center. The most requested layout upgrade we see.

Good for: Large kitchens, families who gather around the kitchen, adding prep space and seating.

Structural reality: An island with a sink or dishwasher needs plumbing through the floor — on a slab foundation, that means jackhammering concrete. An island with a cooktop needs a dedicated gas line and overhead ventilation (downdraft or hood). Electrical for an island requires running conduit through the slab. A basic island with no plumbing or gas starts around $5,000–$8,000 for the cabinet and countertop. Add plumbing and you're looking at $12,000–$20,000 for the island alone.

Peninsula

An L-shape or U-shape with a connected countertop extending into the room — like an island that's attached to a wall or cabinet run.

Good for: Kitchens that are too small for a freestanding island, adding seating without a major structural investment.

Structural reality: Peninsulas are the budget-friendly alternative to islands because they don't require plumbing through the slab. If you want a peninsula with a sink, you run plumbing through the wall it's attached to — far simpler and cheaper than running through the floor.

The Work Triangle Is Useful — But It's Not 2005 Anymore

The kitchen work triangle — the path between your sink, stove, and refrigerator — is still a decent starting point for layout planning. But modern kitchens have outgrown it.

Today's kitchens function in zones: a cooking zone, a prep zone, a cleanup zone, a storage zone, and often a social zone where people sit, work, or just hang out. A kitchen designed around zones needs more plumbing drops (prep sink, pot filler), more electrical circuits (island outlets, under-cabinet lighting, appliance garages), and more thought about how multiple people move through the space.

There's also a real push away from fully open floor plans. People are starting to understand they don't necessarily want to watch the carrots get peeled and the disposal get run while they're sitting on the couch. Some separation between cooking and living is making a smart comeback — a half-wall, a peninsula with an elevated bar top, or a wide doorway instead of a fully blown-out wall.

The practical takeaway: when you're choosing a layout, think about zones first and the triangle second. And tell your contractor how many people actually cook in your kitchen at once — it changes the whole rough-in plan.

What Layout Changes Actually Cost

This is the part no layout guide tells you. Every kitchen layout article online will show you an L-shape with an island and say “great for entertaining.” None of them mention that getting there from a galley involves a structural engineer, a plumber, an electrician, and potentially $50,000 in work before you've picked a single cabinet.

Here's a realistic breakdown:

Same-Layout Refresh

$40,000–$60,000. New cabinets, countertops, fixtures, backsplash, flooring, paint — everything new, same footprint. No walls moved, no plumbing relocated, no electrical rerouted. The sink, stove, and fridge stay where they are.

This is the fastest, least disruptive, and most predictable option. Construction runs 3–4 weeks after cabinets arrive.

Layout Tweak (Island Addition, Peninsula, Minor Moves)

$60,000–$85,000. Same basic wall structure but you're adding an island, converting a peninsula, or shifting one appliance to a different wall. Requires some plumbing and electrical work but no wall removal.

The island is the variable here. A simple cabinet-and-countertop island with electrical but no plumbing: $5,000–$8,000 added. An island with a prep sink and dishwasher requiring slab plumbing: $12,000–$20,000 added.

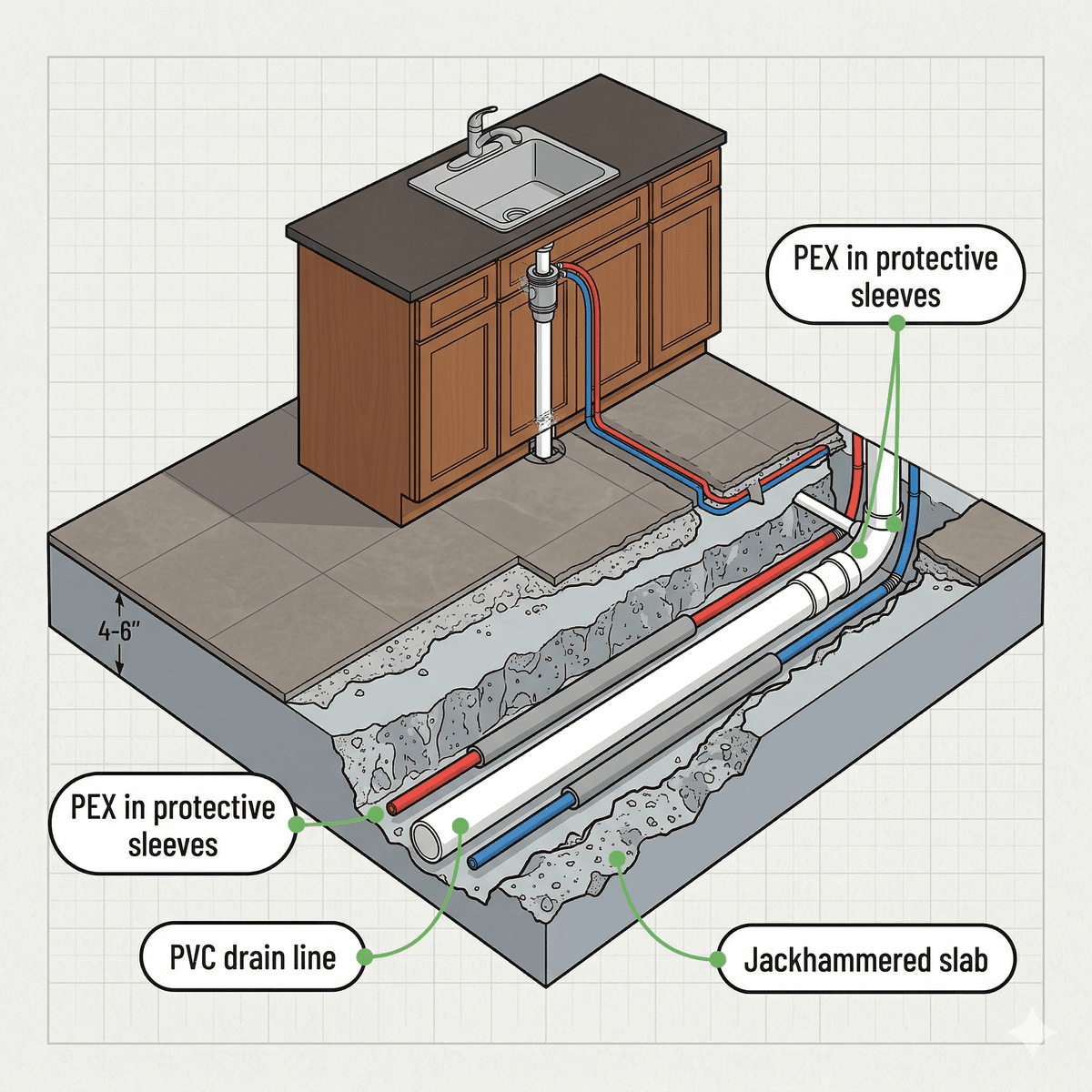

Cutaway showing PEX supply lines and PVC drain in jackhammered concrete slab under kitchen island

Full Layout Change (Wall Removal, Galley to Open)

$75,000–$100,000+. This is the galley-to-open-concept conversion, the U-shape to L-shape with island, or any project that involves removing or relocating walls.

The cost drivers:

Load-bearing wall removal: Structural engineer assessment ($500–$1,500), steel beam fabrication and installation ($3,000–$8,000), temporary shoring during construction
Plumbing relocation on slab: Jackhammering concrete, rerouting drains, patching and refinishing the slab ($5,000–$15,000 depending on distance)
Electrical panel and circuit work: Moving to a new layout often maxes out existing circuits. Panel upgrade if needed: $2,000–$4,000
Cast iron plumbing replacement: In pre-1960s St. Pete homes, you'll likely find cast iron drain pipes. After 60–80 years, these are often corroded and need replacement to the street. Add $10,000–$20,000. This isn't optional — once you open the floor for a layout change, you can see the problem, and you can't close it back up and pretend it's fine.

On our T&M billing model, 75% of those line items are confirmed fixed-price from subcontractors and vendors before construction starts — giving you 90–95% budget certainty. You see every invoice, and when demo goes faster than estimated, you save money. For a deeper breakdown by project tier, see our kitchen remodel cost guide.

Thinking about a layout change? We'll walk your kitchen, assess the structural situation, and tell you what's realistic for your home and budget — no obligation. Request a free consultation or call 727-888-6161.

Best Layout by Home Type (St. Pete Edition)

Your home's age and construction type narrows your layout options more than any design preference.

1920s–1940s Bungalows (Old Northeast, Kenwood, Roser Park)

What you have: A galley kitchen on the back of the house — possibly on a converted sleeping porch with a sloped floor. Compact, closed off, and built for a time when kitchens were for cooking, not entertaining.

Best conversion: Galley to L-shape with the back wall opened to the living area. Keep the sink on the existing plumbing wall to save cost. Add a peninsula instead of an island — most of these kitchens are too small for a freestanding island with clearance.

Watch for: Cast iron plumbing, knob-and-tube or early Romex wiring, plaster-and-lathe walls (more expensive to modify than drywall), and potential lead paint if pre-1978.

1950s–1960s Ranches (Kenwood, Disston Heights, Lealman)

What you have: A galley or U-shape with a pass-through window to the dining room. More space than the bungalows but still isolated from the rest of the house.

Best conversion: Remove the wall between kitchen and dining/living to create an open L-shape or L-shape with island. These homes usually have enough footprint for a real island.

Watch for: These are often slab-on-grade with cast iron plumbing and original electrical panels that need upgrading. Budget for both.

1990s–2010s Open Plans (Northeast Park, Snell Isle)

What you have: An already-open layout, usually L-shape or L-shape with island. The bones are right — the finishes are dated.

Best approach: Same-layout refresh or zone reconfiguration. Move the prep zone to the island, add a beverage station, upgrade the lighting plan. No structural work needed — this is the sweet spot for a $40K–$60K kitchen remodel refresh.

Downtown Condos (200 Central, Signature Place, ONE St. Petersburg)

What you have: Usually a one-wall or galley layout dictated by the plumbing stack and shared walls.

Best approach: Work within the existing plumbing stack location. You can upgrade everything — cabinets, counters, appliances, lighting — but moving the sink off the stack requires HOA approval and gets expensive. Focus on maximizing the existing layout with smart storage, better lighting (a sleeper system — a framework mounted to the concrete ceiling to create space for recessed cans), and premium finishes.

Watch for: HOA approval timelines (weeks to months), elevator reservations for material delivery, work hour restrictions, and noise limitations from shared walls.

Galley to Open Concept: The Conversion We Do Most

The most common layout change we handle in St. Petersburg is opening a closed galley kitchen to the adjacent living area. Here's what's actually involved:

Step 1 — Structural assessment. Before anything, we determine if the wall between the kitchen and living room is load-bearing. In most older St. Pete homes, it is. A structural engineer designs the beam replacement — typically a steel I-beam or engineered wood beam that carries the load the wall used to carry. Cost: $500–$1,500 for the engineering, $3,000–$8,000 for the beam and installation.

Step 2 — Demo and discovery. The wall comes down, and we see what's been hiding for 60–80 years. In older homes, this is where we find cast iron plumbing that needs replacement, outdated wiring, and previous DIY work from four generations of grandpas and dads doing their own thing. Our T&M model handles this openly — surprises are discussed, priced, and billed fairly, not buried in a padded bid.

Step 3 — Rough-in. Plumbing and electrical get rerouted for the new layout. If you're moving the sink, new drain lines get cut into the slab. New circuits get run for the island, under-cabinet lighting, and any appliance changes. Typical rough-in: 1–2 weeks.

Step 4 — Build. Framing modifications, drywall, cabinets, countertops, tile, fixtures, appliances, and finishes. Our 20+ W-2 carpenters handle the framing, cabinet installation, and trim work directly — they're not subcontractors who show up when they feel like it.

Timeline: A galley-to-open conversion typically adds 2–4 weeks to the construction schedule compared to a same-layout remodel. Total project: 2–4 months of construction after a 3–5 month pre-construction phase for design, selections, and permitting.

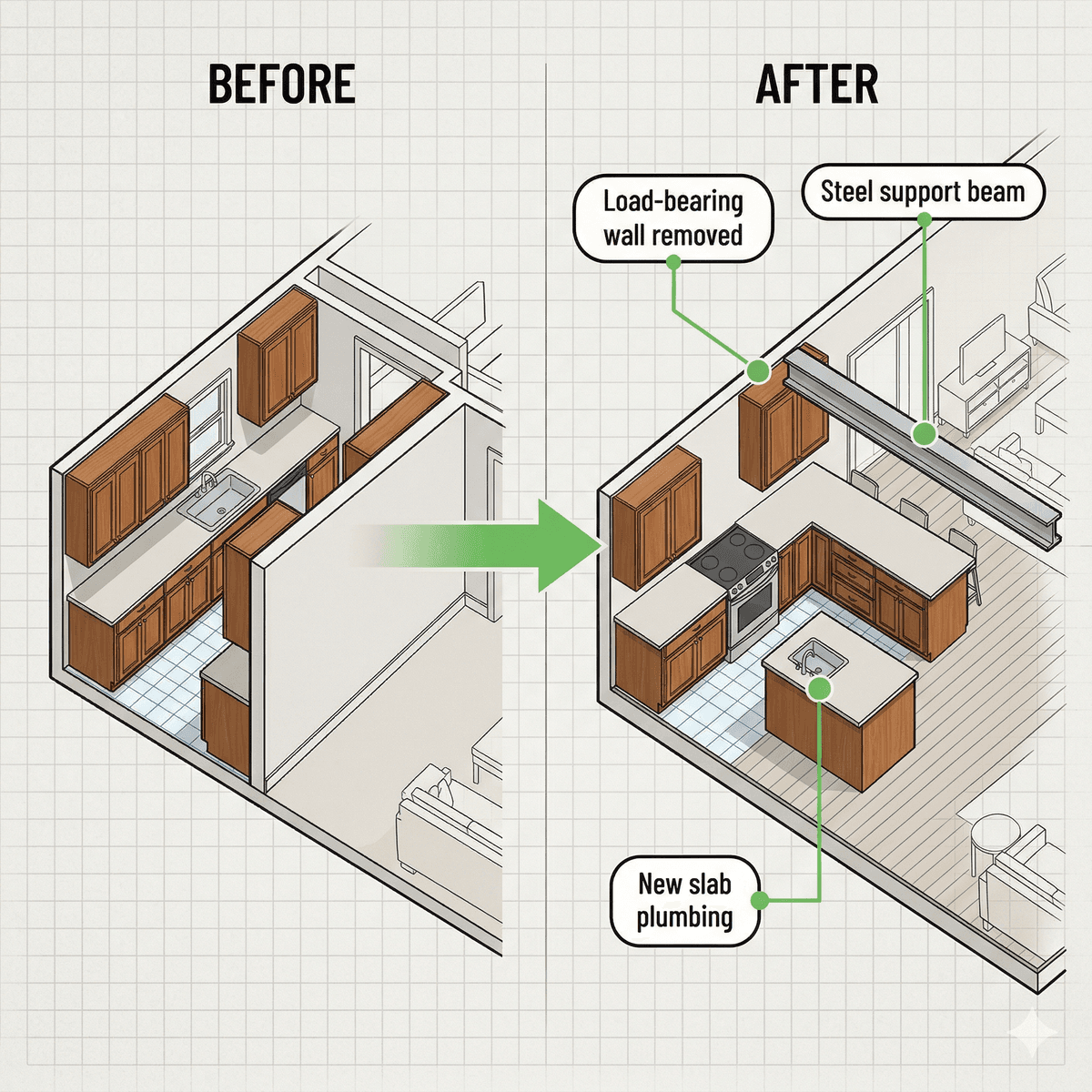

Before and after illustration of galley kitchen converted to open concept with steel support beam

Frequently Asked Questions

Can I Change My Kitchen Layout Without Removing Walls?

Yes — an island addition, peninsula extension, or appliance relocation can meaningfully change how your kitchen functions without any wall removal. These are less disruptive and less expensive than structural layout changes. Budget $60,000–$85,000 vs. $75,000–$100,000+ for a wall-removal project.

How Much Does It Cost to Open Up a Galley Kitchen?

In St. Petersburg, a galley-to-open conversion with new cabinets, countertops, and finishes typically runs $75,000–$100,000+. The structural beam, plumbing relocation, and electrical work add $15,000–$30,000 beyond what a same-layout remodel would cost. Cast iron plumbing replacement in older homes can add another $10,000–$20,000.

Do I Need a Structural Engineer for a Kitchen Layout Change?

If you're removing or modifying any wall, yes. Even non-load-bearing walls may contain plumbing, electrical, or HVAC runs that need rerouting. A structural engineer assessment runs $500–$1,500 for a residential kitchen project. We coordinate this as part of pre-construction — it's built into the design phase, not an afterthought.

What's the Best Layout for a Small Florida Kitchen?

For kitchens under 150 square feet — common in pre-1960s St. Pete homes — an L-shape with a peninsula gives you the most functional space without requiring a massive footprint. Galley layouts work for single-cook households but feel cramped when two people are in the kitchen. If your galley is at least 10 feet wide, you may have room for a narrow island (24 inches deep) that doubles as a prep station.

How Long Does a Kitchen Layout Change Take Compared to a Same-Layout Remodel?

A same-layout refresh runs 3–4 weeks of construction. A layout change with wall removal adds 2–4 weeks for structural work, plumbing relocation, and electrical rerouting — so 5–8 weeks of construction total. Pre-construction (design, selections, permitting) runs 3–5 months regardless of scope. Cabinet lead times of 6–12 weeks often set the overall pace.

Can I Change a Condo Kitchen Layout?

You can change finishes, cabinets, and appliances freely. Moving plumbing off the building's stack or making structural changes to shared walls requires HOA approval — and some HOAs won't approve it. The concrete ceiling structure also limits lighting options. We've done condo kitchens across downtown St. Pete and the beaches — the key is understanding what the building will and won't allow before you design anything.

Does Adding an Island Increase My Home's Value?

An island adds both functional value and resale appeal, but only if the kitchen is large enough to support one with proper clearance (36–42 inches on all sides). A cramped island that blocks traffic flow actually hurts the home. In the St. Pete market, a well-executed kitchen remodel with a functional island typically recoups 50–70% of its cost at resale according to national remodeling data — and makes the home sell faster.
