How Your Lot Survey Drives the Custom-Home Design in St. Pete
Most first-time custom-home buyers in St. Pete assume the architect starts with a floor plan and figures out the lot fit later. It is usually the other way around. The lot survey drives the design — setbacks, Base Flood Elevation, protected tree drip lines, drainage easements, and platted utility easements each carve into what the architect can actually draw before the first line hits paper. Get the surveys before the architect starts, not during permit review, and you save yourself the scope-lock revision cycle that costs custom-home buyers tens of thousands of dollars every year in Pinellas.
The Three Surveys You Might Need — and What Each One Shows
The word "survey" gets used loosely. There are three distinct products, and which ones you order depends on the lot.
A boundary survey shows legal property lines, monuments, existing structures, and recorded easements. It is the baseline document — your title insurance and lender both require one, and your architect needs it before the first schematic. Typical Pinellas cost runs $500 to $800.
A topographic survey adds elevation contours. On a coastal lot, a sloped lot, or any lot in an AE or VE flood zone, the topo is what your architect uses to design the lowest floor above Base Flood Elevation with freeboard. Runs $400 to $1,000 on top of the boundary survey.
A tree survey plots every tree above the size your municipality regulates — in St. Petersburg, generally trees six inches or larger in diameter at breast height, with additional protections for grand trees and species like live oaks. It captures location, species, diameter, and canopy drip line. Typically $300 to $700 as a standalone or bundled into a topographic scope.
If your lot is in Old Northeast, Snell Isle, or any mature-canopy neighborhood, plan on all three. On a coastal AE or VE lot, add the elevation certificate. On a straightforward infill lot with no protected trees in a non-historic X zone, the boundary survey may be enough to start.
The Five Constraints That Shrink Your Buildable Envelope
Once the surveys are in hand, the buildable envelope — the area where the house can actually sit — gets carved down by a stack of constraints. On a typical Pinellas lot, the envelope is meaningfully smaller than the lot line every time.
1. Zoning Setbacks
Pinellas setbacks vary by lot and district. On many City of St. Petersburg residential lots, that lands around six to seven feet on the sides, twenty to thirty feet at the front, and twenty-five feet at the rear. Jeremy Wharton on how this feeds design: "Setback requirements are dictated by the city — often six to seven feet on the sides, twenty to thirty feet front, twenty-five feet rear — and the architect plots those on the survey before designing." Corner lots, waterfront lots, and historic districts each carry different rules; check your specific district before you assume.
2. Base Flood Elevation Plus Freeboard
If your lot is in an AE or VE flood zone on the current FEMA Flood Insurance Rate Map, the lowest occupied floor has to sit at BFE plus one foot of freeboard in Pinellas County. On a VE lot, you are on open pilings with breakaway walls below BFE. The topographic survey plus the elevation certificate feed this directly into the architect's foundation design. See the Pinellas flood zone guide for zone-specific mechanics.
3. Protected Tree Drip Lines
The City of St. Pete tree ordinance protects the canopy drip line — the area under the outer edge of the canopy — from grading, root cutting, and foundation encroachment. A mature live oak with a forty-foot canopy carves a twenty-foot radius out of every direction on the site plan. On a mature-canopy lot in Old Northeast, drip lines are often the single biggest constraint on garage placement and driveway routing.
4. Drainage and Utility Easements
The boundary survey plots recorded easements. You cannot legally build permanent structure inside a platted easement. Buyers regularly discover a rear drainage easement running ten feet across the back of the lot after they have fallen in love with a floor plan that puts the master suite there.
5. Height, Lot Coverage, and Impervious Surface Ratio
Most St. Petersburg residential districts cap total lot coverage and impervious surface ratio; historic overlays add height limits calibrated to the surrounding streetscape.
Per Jeremy: "Most of our custom builds in St. Pete — because we are the most densely populated county in Florida — are going to be on infill that has already been built before." Infill lots are where the envelope-versus-lot-line gap is largest, because the constraints stack.
Why the Survey Has to Come Before the Architect Draws
The common sequencing mistake in custom-home projects: buyer hires the architect first, architect designs against a rough understanding of the lot, drawings advance into design development, then the boundary and topographic surveys come in during construction-document phase and force a scope-lock revision cycle.
That cycle is expensive. A single major revision at design development — moving the footprint five feet to clear a drainage easement, dropping the garage to clear a drip line, cutting square footage to fit inside setbacks — routinely burns $10,000 to $50,000 in architect fees, engineering re-coordination, and lost pre-construction time. The survey products themselves total roughly $800 to $1,500 on a typical Pinellas lot. The math is straightforward.
Right sequence: order boundary and topographic surveys the week you close on the lot (or as a due-diligence condition before you close), order the tree survey if the lot has mature canopy or sits in a protected district, get the FEMA elevation certificate if you are in an AE or VE flood zone, then hand the whole package to the architect on day one of schematic design. See custom home design fees in St. Petersburg for how architect billing structures interact with lot complexity.
Jeremy on how challenging lots translate into cost: "How do you handle challenging lots — slope, soil, trees, flood zone? All those things just boil down to money that usually is outlaid early in a project. We have had lots that were never cleared before — that is a significant amount of tree work, also working with arborists on which trees get preserved and working with the municipality to determine the tree plan."
Where the Survey Decides Scope
The envelope does not just shape the footprint — it cascades. Foundation type gets decided by the topographic survey and the elevation certificate (slab-on-grade, elevated stem-wall, or driven pilings). Garage placement often runs into drip-line encroachment on mature-canopy lots. Pool feasibility runs into rear-yard setbacks and drainage easements more often than buyers expect. Height limits in historic overlays can cap whether a two-story program fits at all.

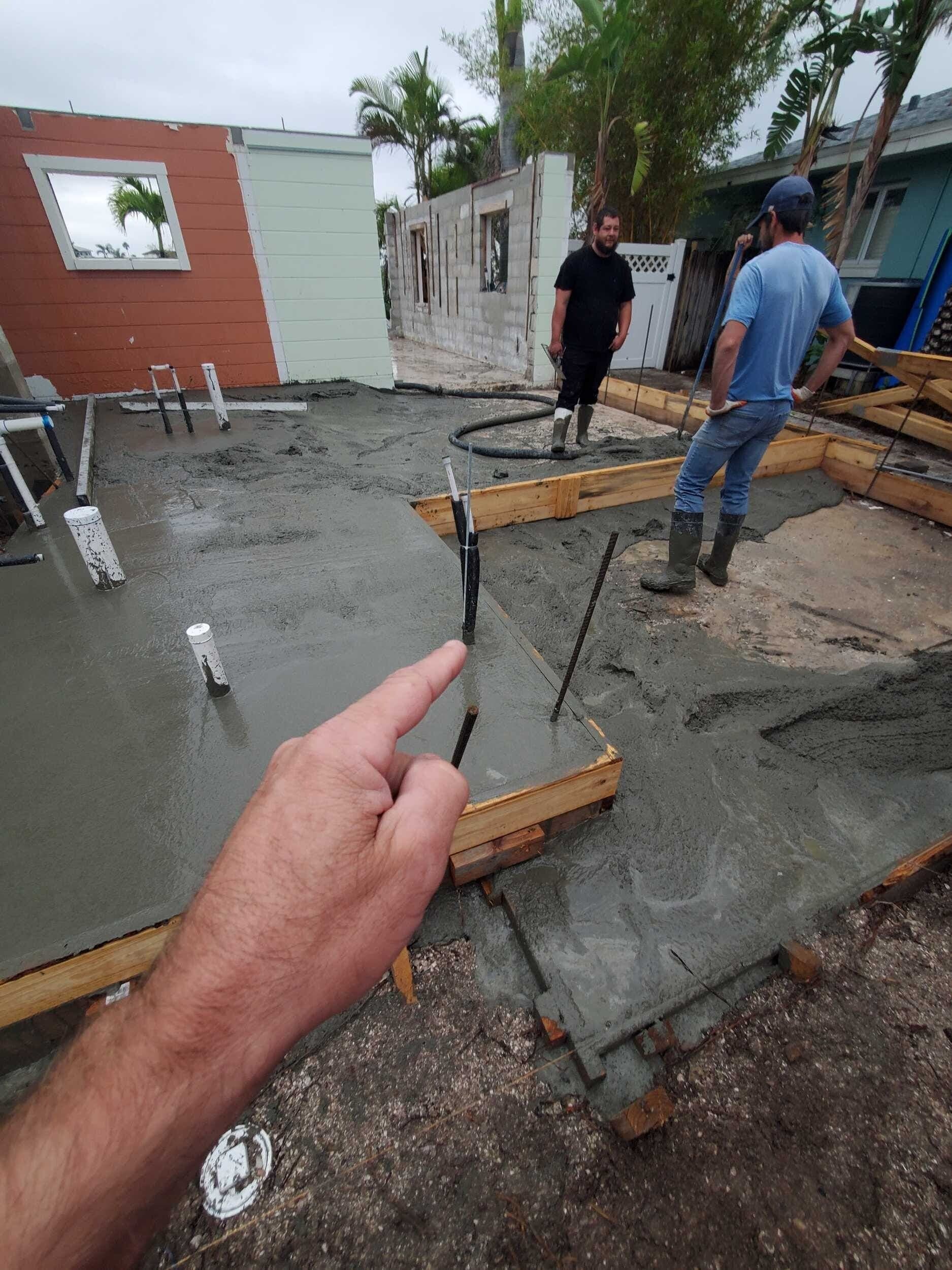

Per Jeremy on day one of construction: "For a new build, we are going to start with some surveying, staking, and laying out of where the building's footprint is going to be." The stakes go where the survey says the envelope is. If the survey work was done properly at pre-design, that day is a routine layout. If it was skipped, that day is where you learn what you cannot build.
Three Questions Before Hiring an Architect
- Have the boundary, topographic, and tree surveys been ordered, and can I see them before we sign a design agreement?
- Has the elevation certificate been pulled if I am in an AE or VE flood zone?
- Will you review the survey package with my general contractor before schematic design?
If any answer is "we will get to it later," that is the sequencing mistake that costs money later.
Frequently Asked Questions
What Surveys Do I Need Before Designing?
A boundary survey is the baseline. On coastal or sloped lots or any AE/VE flood zone, add a topographic survey. On mature-canopy lots or historic districts, add a tree survey.
What Are the Setbacks in Pinellas County?
On many City of St. Petersburg residential lots: six to seven feet sides, twenty to thirty feet front, twenty-five feet rear. Corner, waterfront, and historic districts carry different rules.
How Does the Tree Ordinance Affect Design?
The City of St. Pete tree ordinance protects the canopy drip line from grading, root cutting, and foundation encroachment. On mature-canopy lots, drip lines often drive garage placement and driveway routing.
Why Must the Survey Come Before the Architect?
A single major revision at design development routinely burns $10,000 to $50,000 in architect fees, engineering re-coordination, and lost pre-construction time. The surveys themselves total roughly $800 to $1,500.
